Guide sleeve(JFAT)

Introduction

Guide sleeve - JFAT

1、Product structure characteristics

Shaft with reciprocating dust guide ring, the piston from the support and guiding role, and has a dust effect.
Has a good shock absorption performance, easy installation, reliable work, improve the durability of seals.

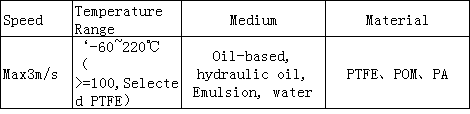

2、Working conditions

$E:\鏈懡鍚�.PNG$

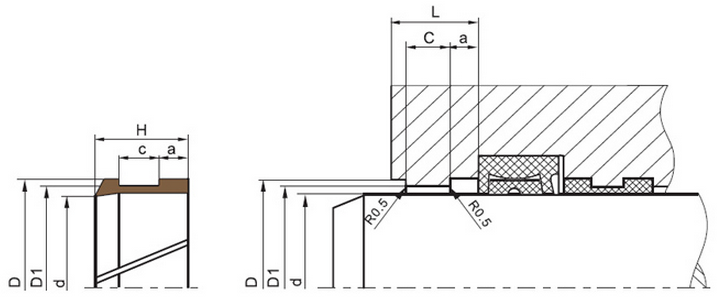

3、Assembly drawings

$E:\鍥剧墖1.png$

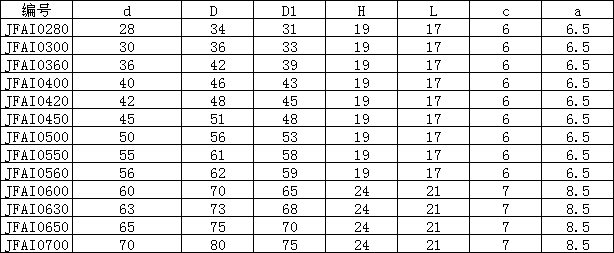

4、JFAT Specification Table

$E:\鏈懡鍚�.PNG$

编号	d	D	D1	H	L	c	a
JFAI0720	72	82	77	24	21	7	8.5
JFAI0750	75	85	80	24	21	7	8.5
JFAI0800	80	90	85	24	21	7	8.5
JFAI0850	85	95	90	24	21	7	8.5
JFAI0900	90	100	95	24	21	7	8.5
JFAI0950	95	105	100	24	21	7	8.5
JFAI1000	100	110	105	24	21	7	8.5
JFAI1050	105	115	110	24	21	7	8.5
JFAI1100	110	120	115	24	21	7	8.5
JFAI1150	115	125	120	24	21	7	8.5
JFAI1200	120	130	125	24	21	7	8.5
JFAI1250	125	135	130	24	21	7	8.5
JFAI1300	130	140	135	24	21	7	8.5
JFAI1400	140	150	145	24	21	7	8.5
JFAI1500	150	162	156	35	31	15	10
JFAI1600	160	172	166	35	31	15	10
JFAI1650	165	177	171	35	31	15	10
JFAI1700	170	182	176	35	31	15	10
JFAI1800	180	192	186	35	31	15	10
JFAI1900	190	202	196	35	31	15	10
JFAI2000	200	212	206	35	31	15	10
JFAI2200	220	232	226	35	31	15	10
JFAI2250	225	237	231	35	31	15	10
JFAI2400	240	252	246	35	31	15	10
JFAI2500	250	262	256	35	31	15	10
JFAI2600	260	272	266	35	31	15	10
JFAI2800	280	292	286	35	31	15	10
JFAI2900	290	302	296	35	31	15	10
JFAI3000	300	312	306	35	31	15	10
JFAI3200	320	332	326	35	31	15	10
JFAI3500	350	362	356	35	31	15	10
JFAI3600	360	372	366	35	31	15	10
JFAI3800	380	392	386	35	31	15	10
JFAI4000	400	412	406	35	31	15	10
JFAI4150	415	427	421	35	31	15	10
JFAI4200	420	432	426	35	31	15	10
JFAI4250	425	437	431	35	31	15	10
JFAI4500	450	462	456	35	31	15	10
JFAI4800	480	492	486	35	31	15	10
JFAI5000	500	512	506	35	31	15	10
JFAI5600	560	572	566	35	31	15	10
JFAI6000	600	612	606	35	31	15	10
JFAI6300	630	642	636	35	31	15	10
