L-shaped Guide Ring

Introduction

$E:\鍥剧墖1.png$

L-shaped Guide Ring - JFL

1、Product structure characteristics
The reciprocating motion of the hole is a supporting ring with both directions. In the high pressure or large gap can prevent the early closure of the seal into the gap,
Improve the pressure resistance of the seal, to extend the service life.

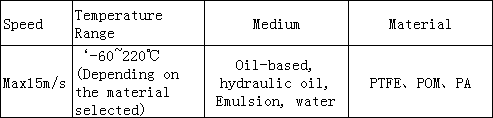

2、Working conditions

$E:\鏈懡鍚�.PNG$

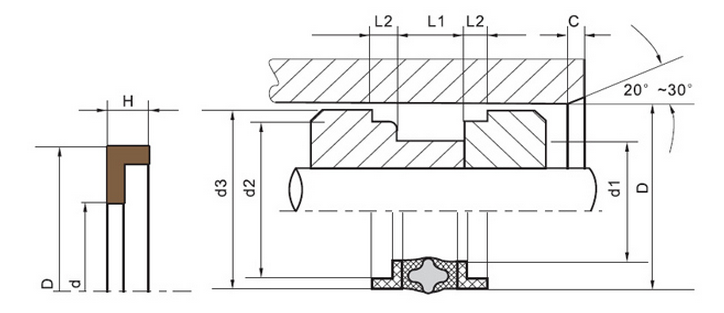

3、Assembly drawings

$E:\鍥剧墖1.png$

4、JFL Specification Table

S/N	Specification			S/N	Specification
S/N	D	d	H	S/N	D	d	H
JFL001	25.00	12.00	7.50	JFL011	38.10	25.40	7.93
JFL002	25.40	12.70	6.35	JFL012	38.10	25.40	8.81
JFL003	25.00	15.00	6.50	JFL013	41.28	25.40	8.71
JFL004	25.40	15.88	6.35	JFL014	45.00	26.00	9.50
JFL005	28.58	15.88	7.93	JFL015	44.45	28.58	8.71
JFL006	32.00	17.00	8.50	JFL016	44.45	28.58	8.81
JFL007	28.58	19.05	7.93	JFL017	50.00	30.00	10.00
JFL008	32.00	22.00	6.50	JFL018	47.63	31.75	8.71
JFL009	34.93	22.23	7.93	JFL019	60.33	31.75	15.62
JFL010	40.00	25.00	8.50	JFL020	50.00	34.00	8.70


S/N	Specification			S/N	Specification
S/N	D	d	H	S/N	D	d	H
JFL021	50.80	34.93	8.71	JFL061	85.00	65.00	8.95
JFL022	50.80	34.93	8.81	JFL062	85.00	65.00	10.00
JFL023	50.00	35.00	8.50	JFL063	85.73	66.68	9.53
JFL024	53.98	38.10	8.71	JFL064	158.75	66.68	8.71
JFL025	55.00	40.00	8.50	JFL065	88.90	69.85	9.22
JFL026	60.00	40.00	10.00	JFL066	88.90	69.85	9.53
JFL027	50.80	41.28	8.31	JFL067	85.00	70.00	9.75
JFL028	57.15	41.28	8.71	JFL068	90.00	70.00	10.00
JFL029	57.15	41.28	8.81	JFL069	92.08	73.03	9.53
JFL030	63.00	43.00	10.00	JFL070	95.00	75.00	10.00
JFL031	60.00	44.00	8.45	JFL071	100.00	75.00	9.45
JFL032	60.33	44.45	8.71	JFL072	100.00	75.00	12.50
JFL033	63.00	47.00	8.95	JFL073	92.08	76.20	7.93
JFL034	63.50	47.63	8.71	JFL074	95.25	76.20	7.95
JFL035	63.50	47.63	8.81	JFL075	165.58	76.20	10.67
JFL036	76.20	47.63	15.62	JFL076	98.43	79.38	9.53
JFL037	63.00	48.00	8.50	JFL077	100.00	80.00	9.20
JFL038	65.00	50.00	8.50	JFL078	100.00	80.00	10.00
JFL039	65.00	50.00	8.70	JFL079	105.00	80.00	12.50
JFL040	70.00	50.00	8.95	JFL080	101.00	82.55	9.22
JFL041	70.00	50.00	10.00	JFL081	101.60	82.55	9.53
JFL042	63.50	50.80	7.93	JFL082	101.60	82.55	12.95
JFL043	66.68	50.80	8.71	JFL083	105.00	85.00	10.10
JFL044	69.85	50.80	9.22	JFL084	110.00	85.00	9.45
JFL045	69.85	50.80	9.53	JFL085	101.60	88.90	9.53
JFL046	73.03	53.98	9.53	JFL086	107.95	88.90	9.22
JFL047	75.00	55.00	10.00	JFL087	107.95	88.90	9.53
JFL048	70.21	55.88	8.71	JFL088	114.30	88.90	9.22
JFL049	76.20	57.15	9.22	JFL089	114.30	88.90	12.70
JFL050	76.20	57.15	9.53	JFL090	110.00	90.00	8.90
JFL051	56.34	58.73	7.93	JFL091	110.00	90.00	10.00
JFL052	80.00	60.00	8.50	JFL092	117.48	92.08	9.22
JFL053	80.00	60.00	10.00	JFL093	117.48	92.08	12.70
JFL054	79.38	60.33	9.53	JFL094	115.00	95.00	10.00
JFL055	76.20	63.50	9.53	JFL095	120.65	95.25	9.22
JFL056	82.55	63.50	9.22	JFL096	120.65	95.25	12.70
JFL057	82.55	63.50	9.53	JFL097	120.00	100.00	8.95
JFL058	88.90	63.50	9.53	JFL098	120.00	100.00	10.00
JFL059	92.08	63.50	15.62	JFL099	125.00	100.00	9.45
JFL060	85.00	65.00	8.40	JFL100	125.00	100.00	12.50


S/N	Specification			S/N	Specification
S/N	D	d	H	S/N	D	d	H
JFL101	114.30	101.60	12.70	JFL127	160.00	140.00	10.00
JFL102	127.00	101.60	9.22	JFL128	170.00	140.00	9.45
JFL103	127.00	101.60	12.70	JFL129	165.10	146.05	12.70
JFL104	130.00	104.00	12.50	JFL130	171.45	146.05	12.70
JFL105	125.00	105.00	8.90	JFL131	170.00	150.00	10.00
JFL106	130.00	105.00	9.40	JFL132	180.00	150.00	9.45
JFL107	133.35	107.95	12.70	JFL133	177.80	152.04	12.70
JFL108	135.00	110.00	12.50	JFL134	190.50	158.75	12.70
JFL109	139.70	114.30	8.81	JFL135	180.00	160.00	10.00
JFL110	139.70	114.30	12.70	JFL136	190.00	160.00	12.50
JFL111	139.70	114.30	15.88	JFL137	196.85	165.10	12.70
JFL112	140.00	115.00	9.45	JFL138	200.00	170.00	10.05
JFL113	140.00	120.00	10.00	JFL139	200.00	170.00	15.00
JFL114	150.00	120.00	12.50	JFL140	200.00	175.00	12.50
JFL115	146.05	120.65	12.70	JFL141	203.20	177.80	12.70
JFL116	145.00	125.00	10.00	JFL142	200.00	180.00	12.70
JFL117	150.00	125.00	9.45	JFL143	210.00	180.00	9.01
JFL118	152.04	127.00	9.22	JFL144	203.20	184.15	9.65
JFL119	152.04	127.00	12.70	JFL145	228.60	196.85	12.70
JFL120	152.04	127.00	15.88	JFL146	220.00	200.00	10.00
JFL121	160.00	130.00	9.45	JFL147	228.60	203.20	12.70
JFL122	158.75	133.35	12.70	JFL148	247.65	215.90	12.70
JFL123	160.00	135.00	12.50	JFL149	250.00	220.00	15.00
JFL124	165.10	139.70	9.22	JFL150	254.00	228.60	12.70
JFL125	165.10	139.70	12.70	JFL151	280.00	250.00	15.00
JFL126	160.00	140.00	9.10
