Pollution proof sealing ring

Introduction

Pollution proof sealing ring - KZT

1、Product structure characteristics

Used in conjunction with piston seals and wear rings to prevent oil from being damaged by the mixing of foreign matter in the cylinder and to ensure that the seal has a long service life.

When used in combination with a piston rod seal and a metal bushing, it is possible to prevent damage to the piston rod due to the impurity immersion function of PTFE.

There is a mouth and oil bypass groove, to prevent the accumulation of oil pressure

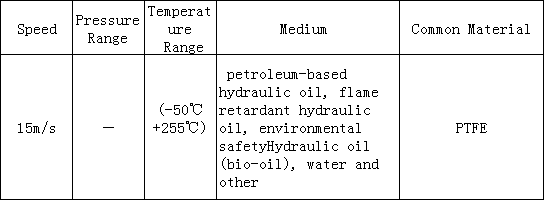

2、Working conditions

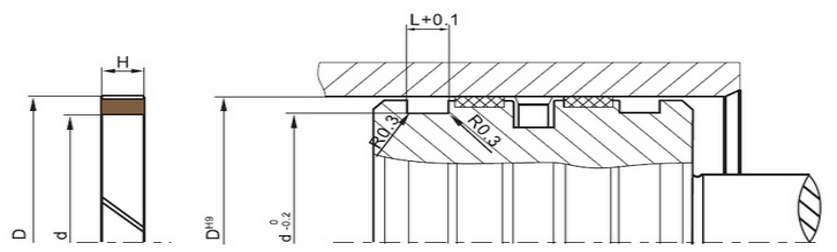

3、Assembly drawings

4、KZT Specification Table

序号	D	d	H	L	序号	D	d	H	L
KNT0200	20	14	5	5.2	KZT1150	115	107	6	6.2
KZT0250	25	19	5	5.2	KZT1200	120	112	6	6.2
KZT0300	30	24	5	5.2	KZT1250	125	117	6	6.2
KZT0315	31.5	25.5	5	5.2	KZT1300	130	122	6	6.2
KZT0320	32	26	5	5.2	KZT1350	135	127	6	6.2
KZT0350	35	29	5	5.2	KZT1400	140	132	6	6.2
KZT0355	35.5	29.5	5	5.2	KZT1500	150	142	6	6.2
KZT0400	40	34	5	5.2	KZT1600	160	152	6	6.2
KZT0450	45	39	5	5.2	KZT1700	170	162	8	8.2
KZT0500	50	44	5	5.2	KZT1800	180	172	8	8.2
KZT0530	53	47	5	5.2	KZT1900	190	182	8	8.2
KZT0550	55	49	5	5.2	KZT2000	200	192	8	8.2
ZKT0560	56	50	5	5.2	KZT2100	210	202	8	8.2
KZT0600	60	54	5	5.2	KZT2200	220	212	8	8.2
KZT0630	63	55	6	6.2	KZT2240	224	216	8	8.2
KZT0650	65	57	6	6.2	KZT2300	230	222	8	8.2
KZT0700	70	62	6	6.2	KZT2400	240	232	8	8.2
KZT0710	71	63	6	6.2	KZT2500	250	242	8	8.2
KZT0750	75	67	6	6.2	KZT2600	260	252	8	8.2
KZT0800	80	72	6	6.2	KZT2700	270	262	8	8.2
KZT0850	85	77	6	6.2	KZT2800	280	272	8	8.2
KZT0900	90	82	6	6.2	KZT2900	290	282	8	8.2
KZT0950	95	87	6	6.2	KZT3000	300	292	8	8.2
KZT1000	100	92	6	6.2	KZT3100	310	302	8	8.2
KZT1050	105	97	6	6.2	KZT3200	320	312	8	8.2
KZT1100	110	102	6	6.2	KZT3400	340	332	8	8.2
KZT1120	112	104	6	6.2	KZT3500	350	342	8	8.2
