Home >>PRODUCTS >>PTFE Series Products >>Rotary Seal Series

Stainless Steel & PTFE Seal

Introduction

Stainless Steel & PTFE Seal - GPB

1、Product structure characteristics

Made of stainless steel housing and lap-type PTFE rotary seal lip, with low friction, low energy consumption of the excellent features.

Not only can completely replace the traditional oil seal, but also in poor lubrication, high-speed, high temperature and strong corrosive media and other harsh conditions apply.

GPB oil seal with a single lip, lips, three lips, with or without a variety of forms such as dust lips.

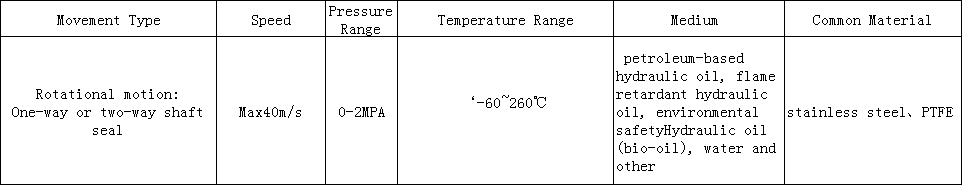

2、Working conditions

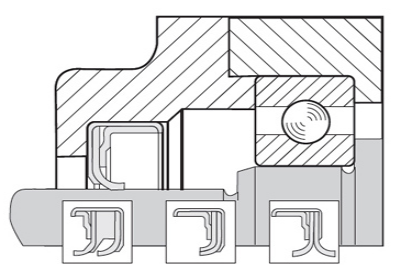

3、Assembly drawings



4、GPB Specification Table

S/NNominal sizeForm
S/NNominal sizeForm
ID*OD*H
ID*OD*H
110*25*7Single lips
4130*52*7Anti-lips
213*30*7Anti-lips
4230*62*8Anti-lips
313*30*7Anti-lips
4331*54*9.8Single lips
414*31.5*8Single lips
4432*47*10Single lips
515*35*6Single lips
4532*54*8Single lips
615*42*6Single lips
4632*55*15Lips
716*35*7Single lips
4732.5*50.7*8.6Single lips
817*35*7Single lips
4835*47*6Anti-lips
917*35*7Anti-lips
4935*47*7Single lips
1019*27*6Single lips
5035*47*8Single lips
1119*40*7Single lips
5135*47*8Lips
1219*40*8Single lips
5235*50*7Anti-lips
1320*35*7Anti-lips
5335*50*8Single lips
1420*35*8Single lips
5435*50*8Lips
1524*35.2*8Single lips
5535*50*8Anti-lips
1625*40*7Single lips
5635*50*10Lips
1725*40*8Anti-lips
5735*50*12Lips
1825*42*7Single lips
5835*50*15Lips
1925*42*8Single lips
5935*51*8Single lips
2025*45*8Single lips
6035*52*6Single lips
2125*52*7Anti-lips
6135*52*7Lips
2225.4*41.4*10.16Single lips
6235*52*8Anti-lips
2325.4*41.4*10.16Single lips
6335*53*8Single lips
2427*47.6*6.5Single lips
6435*53*10Lips
2528*42*6Single lips
6535*54*9.4Lips
2628*42*7Single lips
6635*55*8Single lips
2728*42*8Single lips
6735*55*8Lips
2828*42*10Single lips
6835*55*12Lips
2928*45*10Single lips
6935*65*12Lips
3028*47*7Single lips
7035*56*15Lips
3128*52*13Lips
7135*60*10Single lips
3230*40*8Single lips
7235*60*14.5Lips
3330*45*7Single lips
7335*62*8Single lips
3430*47*7Single lips
7435*62*12Lips
3530*47*7Single lips
7536*51*8Single lips
3630*45*10Anti-lips
7636*51*10Lips
3730*50*8Single lips
7736*52*7Single lips
3830*50*10Single lips
7836*52*10Lips
3930*50*15Lips
7936*60*14Lips
4030*52*7Single lips
8037*51*10Lips


















S/NNominal sizeForm
S/NNominal sizeForm
ID*OD*H
ID*OD*H
8137*55*11.5Lips
12142*60*8Single lips
8237*55*15Lips
12242*60*9Single lips
8338*51*7Single lips
12342*60*10Single lips
8438*51*8Lips
12442*60*10Lips
8538*52*7Single lips
12542*62*10Lips
8638*52*10Single lips
12642*62*11Lips
8738*55*10Single lips
12742*62*12Single lips
8838*55*10Lips
12842*65*10Single lips
8938*60*15Single lips
12942*80*12Lips
9038*60*15Lips
13043*58.8*10Lips
9138.5*62*8Single lips
13143*62*8Single lips
9238*58*10Single lips
13244*60*10Single lips
9339*55*10Single lips
13344.5*58.8*11Three lips
9439*62*8.5Lips
13445*59*10Lips
9540*51.5*7Single lips
13545*60*6Single lips
9640*52*7Single lips
13645*60*8Single lips
9740*52*10Single lips
13745*60*9Single lips
9840*54*10Lips
13845*60*10Single lips
9940*55*8Single lips
13945*62*7Single lips
10040*55*8Anti-lips
14045*62*8Single lips
10140*55*10Lips
14145*62*8Lips
10240*55*10Single lips
14245*62*8Anti-lips
10340*55*12Single lips
14345*62*10Single lips
10440*55*12Lips
14445*62*12Single lips
10540*55*15Lips
14545*65*7Single lips
10640*56*7Single lips
14645*65*8Single lips
10740*56*10Single lips
14745*65*8Lips
10840*60*8Single lips
14845*65*8Anti-lips
10940*60*8Anti-lips
14945*65*10Single lips
11040*60*9Single lips
15045*65*10Lips
11140*60*12Anti-lips
15145*65*10Anti-lips
11240*62*8Single lips
15245*65*12Single lips
11340*62*8Anti-lips
15345*65*15Single lips
11440*62*8Lips
15445*68*8Single lips
11540*62*10Lips
15545*68*8Lips
11640*62*11Lips
15645*68*10Lips
11740*80*12Lips
15745*68*12Lips
11841.2*54*6Single lips
15846*60*8Single lips
11941.27*54*8Single lips
15946*62*10Lips
12041.2*54*10Lips
16046*68*8Single lips









S/NNominal sizeForm
S/NNominal sizeForm
ID*OD*H
ID*OD*H
16146.5*62*16Lips
20152*71.2*8Single lips
16247*62*15Single lips
20252*73*10Single lips
16347.6*62*14.5Single lips
20353*73*10.5Three lips
16447.6*62*14.5Three lips
20454*70*12Lips
16548*62*8Single lips
20554*73*10Single lips
16648*65*8Single lips
20654*73*10Lips
16748*65*12Single lips
20754*73*10Anti-lips
16848*65*15Lips
20854*73*10.5Lips
16948*70*10Single lips
20954*73*10.5Three lips
17048*72*14.5Lips
21055*65*8Lips
17148*72*8Single lips
21155*70*8Single lips
17249*73*9Single lips
21255*70*11.5Lips
17350*60*8Single lips
21355*72*15Lips
17450*65*8Lips
21455*72*8Single lips
17550*65*10Lips
21555*72*8Lips
17650*65*10Lips
21655*72*10Single lips
17750*65*8Single lips
21755*72*10Lips
17850*65*10Single lips
21855*75*8Anti-lips
17950*68*8Anti-lips
21955*78*8Single lips
18050*68*10Single lips
22055*80*8Anti-lips
18150*70*8Single lips
22155*80*10Anti-lips
18250*70*8Anti-lips
22257*73*11Anti-lips
18350*70*10Anti-lips
22357*85.5*9.5Anti-lips
18450*70*10Single lips
22457*85.5*10Single lips
18550*70*10Lips
22557*86*11Single lips
18650*70*12Single lips
22657.15*69.85*7.14Single lips
18750*70*12Lips
22758*75*8Single lips
18850*72*6Single lips
22858*80*8Single lips
18950*72*7Single lips
22958*80*12Lips
19050*72*8Single lips
23058*86*10Lips
19150*72*8Lips
23159*73*11Anti-lips
19250*72*10Single lips
23259*75*8Single lips
19350*72*10Lips
23360*73*8Single lips
19450*72*12Single lips
23460*75*7Single lips
19550*72*12Lips
23560*75*8Single lips
19650*73*10.5Lips
23660*75*8Lips
19750*75*8Anti-lips
23760*75*10Lips
19851*70*10Single lips
23860*80*8Single lips
19951*70*13Three lips
23960*80*8Anti-lips
20052*70*8Single lips
24060*80*8Lips









S/NNominal sizeForm
S/NNominal sizeForm
ID*OD*H
ID*OD*H
24160*80*8Anti-lips
28165*90*10Single lips
24260*80*10Single lips
28265*90*10Lips
24360*80*10Lips
28365*90*10Anti-lips
24460*80*12Lips
28465*90*12Single lips
24560*60*14Single lips
28565*90*12Lips
24660*80*14Lips
28665*95*10Anti-lips
24760*80*14.5Lips
28768*90*10Single lips
24860*8.8*9Single lips
28868*90*10Lips
24960*85*8Single lips
28966.9*101.8*9.5Single lips
25060*85*8Anti-lips
29070*85*8Single lips
25160*85*10Anti-lips
29170*90*10Single lips
25260*85*10Single lips
29270*90*10Anti-lips
25360*85*10Single lips
29370*90*10Lips
25460*85*12Single lips
29470*90*12Lips
25560*85*12Lips
29570*90*15Lips
25660*85*13Anti-lips
29670*98*8Single lips
25760*90*10Single lips
29770*95*8.5Single lips
25862*80*8Single lips
29870*95*10Anti-lips
25962*80*10Lips
29970*95*12Lips
26062*85*8Single lips
30070*95*15Three lips
26162*85*12Single lips
30170*95.2*15Three lips
26263*80*8Single lips
30270*100*10Anti-lips
26363*82*8Single lips
30370*105*12Anti-lips
26463*82*10Single lips
30470*105*12Anti-lips
26563*85*10Single lips
30572*88*10Single lips
26663*85.5*11Single lips
30672*90*10Lips
26765*80*7Single lips
30774*102*9.5Single lips
26865*80*8Single lips
30875*90*10Anti-lips
26965*80*8Lips
30975*93*8Single lips
27065*80*10Single lips
31075*95*8Anti-lips
27165*80*10Lips
31175*95*10Anti-lips
27265*82*8Anti-lips
31275*100*8Single lips
27365*85*8Lips
31375*100*12Single lips
27465*85*8Anti-lips
31475*100*10Anti-lips
27565*85*10Single lips
31575*100*12Lips
27665*85*10Lips
31675*100.3*10Lips
27765*85*12Single lips
31775*105*10Anti-lips
27865*85*12Lips
31875*105*12Anti-lips
27965*90*8Single lips
31976*101*9.5Single lips
28065*90*8Anti-lips
32076.2*100*12Three lips














S/NNominal sizeForm
S/NNominal sizeForm
ID*OD*H
ID*OD*H
32180*100*8Single lips
346100*120*10Single lips
32280*100*10Single lips
347100*120*10Single lips
32380*100*10Lips
348100*120*12Lips
32480*100*12Lips
349100*120*12Single lips
32580*100*15Lips
350100*120*13Lips
32680*107.7*14Anti-lips
351100*125*10Lips
32780*110*10Anti-lips
352100*125*10Anti-lips
32880*110*12Anti-lips
353100*125*13Lips
32980*110*12Lips
354100*125*13Single lips
33080*115*8Anti-lips
355100*130*12Lips
33185*100*10Lips
356100*140*12Anti-lips
33285*110*10Single lips
357110*135*10Anti-lips
33385*110*10Lips
358110*140*14Lips
33485*110*12Lips
359125*150*10Lips
33585*110*13Lips
360125*150*10Single lips
33690*110*12Single lips
361125*150*12Lips
33790*120*12Anti-lips
362125*150*12Single lips
33893*120*13Lips
363125*160*15Lips
33994.5*120*13Lips
364130*150*12Anti-lips
34095*120*12Lips
365130*160*12Anti-lips
34195*120*13Single lips
366130*160*15Lips
34295*109*6Lips
367130*160*16Single lips
34395*120*12Anti-lips
368135*165*14Single lips
34495*130*12Anti-lips
369140*170*16Single lips
345100*120*8.5Lips
370280*316*18Single lips


Prev：Rotary Glyd Ring   Next：PFTE Rotary Oil
Tags：
Source：
Date：2018-3-24 15:00:20
