Step Seal for Rod

Introduction

一、Step Sealfor Rod - GSJ

1、Product structure characteristics
It consists of a PTFE seal and a rubber O-ring as a preload element.
It is a reciprocating seal that can withstand unidirectional effects of high pressure, low pressure and heavy load and alternating pressure.

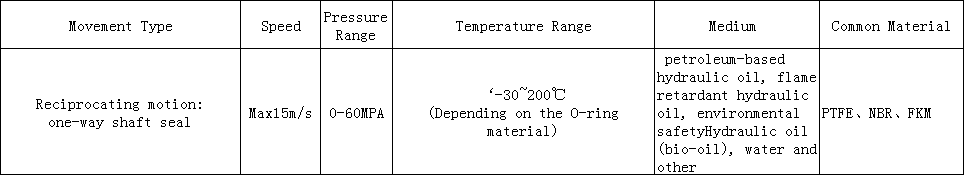

2、Working conditions

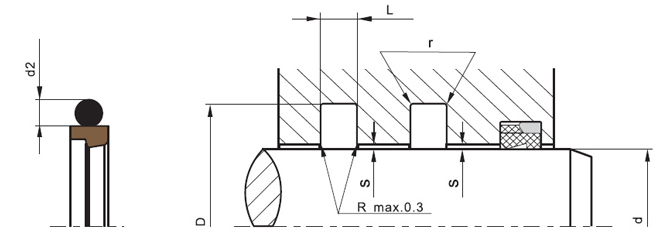

3、Assembly drawings and installation dimensions


Shaft diameter dh9			Groove diameter	Groove width	Fillet	Radial clearance Smax			O-ring section
Standard Specification	Light	Heavy	DH9	L+0.2	r	10Mpa	20Mpa	40Mpa	d2
3-7.9	8-18.9	-	d+4.9	2.2	0.4	0.4	0.2	0.15	1.78
8-18.9	19-37.9	-	d+7.3	3.2	0.6	0.6	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	d+10.7	4.2	1.0	1.0	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	d+15.1	6.3	1.3	1.3	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	d+20.5	8.1	1.8	1.8	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	d+24.0	8.1	1.8	1.8	0.35	0.25	7.00
650-999.9	>=1000	256-649.9	d+27.3	9.5	2.5	2.5	0.50	0.30	8.40
>=1000	-	650-999.9	d+38.0	13.8	3.0	3.0	0.70	0.60	12.00

4、GSJ Specification Table

S/N	Shaft diameter	Groove diameter	Groove width	S/N	Shaft diameter	Groove diameter	Groove width
S/N	dh9	DH9	L+0.2	S/N	dh9	DH9	L+0.2
GSJ0080	8	15.3	3.2	GSJ1400	140	155.1	6.3
GSJ0100	10	17.3	3.2	GSJ1450	145	160.1	6.3
GSJ0120	12	19.3	3.2	GSJ1500	150	165.1	6.3
GSJ0140	14	21.3	3.2	GSJ1550	155	170.1	6.3
GSJ0150	15	22.3	3.2	GSJ1600	160	175.1	6.3
GSJ0160	16	23.3	3.2	GSJ1600H	160	180.5	8.1
GSJ0180	18	25.3	3.2	GSJ1650	165	180.1	6.3
GSJ0200	20	30.7	4.2	GSJ1700	170	185.1	6.3
GSJ0220	22	32.7	4.2	GSJ1750	175	190.1	6.3
GSJ0250	25	35.7	4.2	GSJ1800	180	195.1	6.3
GSJ0280	28	38.7	4.2	GSJ1800H	180	200.5	8.1
GSJ0300	30	40.7	4.2	GSJ1850	185	200.1	6.3
GSJ0320	32	42.7	4.2	GSJ1900	190	205.1	6.3
GSJ0350	35	45.7	4.2	GSJ1950	195	210.1	6.3
GSJ0360	36	46.7	4.2	GSJ2000L	200	215.1	6.3
GSJ0380	38	53.1	6.3	GSJ2000	200	220.5	8.1
GSJ0400	40	55.1	6.3	GSJ2050	205	225.5	8.1
GSJ0420	42	57.1	6.3	GSJ2100	210	230.5	8.1
GSJ0450	45	60.1	6.3	GSJ2150	215	235.5	8.1
GSJ0480	48	63.1	6.3	GSJ2200	220	240.5	8.1
GSJ0500	50	65.1	6.3	GSJ2250	225	245.5	8.1
GSJ0520	52	67.1	6.3	GSJ2300	230	250.5	8.1
GSJ0550	55	70.1	6.3	GSJ2350	235	255.5	8.1
GSJ0560	56	71.1	6.3	GSJ2400	240	260.5	8.1
GSJ0600	60	75.1	6.3	GSJ2450	245	265.5	8.1
GSJ0630	63	78.1	6.3	GSJ2500	250	270.5	8.1
GSJ0650	65	80.1	6.3	GSJ2600	260	284.0	8.1
GSJ0700	70	85.1	6.3	GSJ2700	270	294.0	8.1
GSJ0750	75	90.1	6.3	GSJ2800	280	304.0	8.1
GSJ0800	80	95.1	6.3	GSJ2850	285	309.0	8.1
GSJ0850	85	100.1	6.3	GSJ2900	290	314.0	8.1
GSJ0900	90	105.1	6.3	GSJ2950	295	319.0	8.1
GSJ0950	95	110.1	6.3	GSJ3000	300	324.0	8.1
GSJ1000	100	115.1	6.3	GSJ3100	310	334.0	8.1
GSJ1050	105	120.1	6.3	GSJ3200	320	344.0	8.1
GSJ1100	110	125.1	6.3	GSJ3300	330	354.0	8.1
GSJ1150	115	130.1	6.3	GSJ3400	340	364.0	8.1
GSJ1200	120	135.1	6.3	GSJ3500	350	374.0	8.1
GSJ1250	125	140.1	6.3	GSJ3600	360	384.0	8.1
GSJ1300	130	145.1	6.3	GSJ3650	365	389.0	8.1
GSJ1350	135	150.1	6.3	GSJ3700	370	394.0	8.1

S/N	Shaft diameter	Groove diameter	Groove width	S/N	Shaft diameter	Groove diameter	Groove width
S/N	dh9	DH9	L+0.2	S/N	dh9	DH9	L+0.2
GSJ3750	375	399.0	8.1	GSJ4700	470	494.0	8.1
GSJ3800	380	404.0	8.1	GSJ4800	480	504.0	8.1
GSJ3900	390	414.0	8.1	GSJ4900	490	514.0	8.1
GSJ4000	400	424.0	8.1	GSJ5000	500	524.0	8.1
GSJ4100	410	434.0	8.1	GSJ5100	510	534.0	8.1
GSJ4200	420	444.0	8.1	GSJ5200	520	544.0	8.1
GSJ4300	430	454.0	8.1	GSJ5300	530	554.0	8.1
GSJ4400	440	464.0	8.1	GSJ5400	540	564.0	8.1
GSJ4500	450	474.0	8.1	GSJ5500	550	574.0	8.1

二、Step Sealfor Rod - GSW

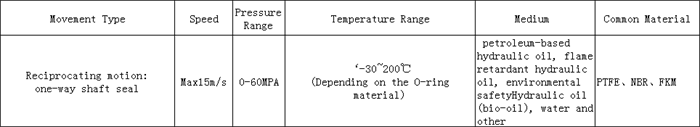

2、Working conditions

3、Assembly drawings and installation dimensions


Shaft diameter	Groove diameter	Groove width	Fillet	Radial clearance Smax			O-ring section
dh9	DH9	L+0.2	r	10Mpa	20Mpa	40Mpa	d2
10-29.9	d+8	3.2	0.6	0.6	0.25	0.15	2.62
30-79.9	d+10	4.2	1	1.0	0.25	0.20	3.53
80-179.9	d+15	6.8	1.3	1.3	0.30	0.20	5.33
180-284.9	d+20	8.1	1.8	1.8	0.35	0.25	7.00
285-600	d+25	9.5	2.5	2.5	0.50	0.30	8.40

4、GSW Specification Table

S/N	Shaft diameter	Groove diameter	Groove width	S/N	Shaft diameter	Groove diameter	Groove width
S/N	dh9	DH9	L+0.2	S/N	dh9	DH9	L+0.2
GSW0100	10	18	3.2	GSW1450	145	160	6.8
GSW0120	12	20	3.2	GSW1500	150	165	6.8
GSW0140	14	22	3.2	GSW1550	155	170	6.8
GSW0160	16	24	3.2	GSW1600	160	175	6.8
GSW0180	18	26	3.2	GSW1650	165	180	6.8
GSW0200	20	28	3.2	GSW1700	170	185	6.8
GSW0250	25	33	3.2	GSW1750	175	190	6.8
GSW0280	28	36	3.2	GSW1800	180	200	8.1
GSW0300	30	40	4.2	GSW1850	185	205	8.1
GSW0320	32	42	4.2	GSW1900	190	210	8.1
GSW0350	35	45	4.2	GSW1950	195	215	8.1
GSW0400	40	50	4.2	GSW2000	200	220	8.1
GSW0450	45	55	4.2	GSW2050	205	225	8.1
GSW0500	50	60	4.2	GSW2100	210	230	8.1
GSW0500H	50	65	6.8	GSW2150	215	235	8.1
GSW0530	53	63	4.2	GSW2200	220	240	8.1
GSW0550	55	65	4.2	GSW2250	225	245	8.1
GSW0550H	55	70	6.8	GSW2300	230	250	8.1
GSW0600	60	70	4.2	GSW2350	235	255	8.1
GSW0600H	60	75	6.8	GSW2400	240	260	8.1
GSW0630	63	73	4.2	GSW2450	245	265	8.1
GSW0650	65	75	4.2	GSW2500	250	270	8.1
GSW0650H	65	80	6.8	GSW2550	255	275	8.1
GSW0670	67	77	4.2	GSW2600	260	280	8.1
GSW0700	70	80	4.2	GSW2650	265	285	8.1
GSW0700H	70	85	6.8	GSW2700	270	290	8.1
GSW0750	75	85	4.2	GSW2750	275	295	8.1
GSW0750H	75	90	6.8	GSW2800	280	300	8.1
GSW0800	80	90	4.2	GSW2850	285	310	9.5
GSW0800H	80	95	6.8	GSW2900	290	315	9.5
GSW0850	85	100	6.8	GSW2950	295	320	9.5
GSW0900	90	105	6.8	GSW3000	300	325	9.5
GSW0950	95	110	6.8	GSW3100	310	335	9.5
GSW1000	100	115	6.8	GSW3200	320	345	9.5
GSW1060	106	121	6.8	GSW3300	330	355	9.5
GSW1100	110	125	6.8	GSW3400	340	365	9.5
GSW1150	115	130	6.8	GSW3500	350	375	9.5
GSW1200	120	135	6.8	GSW3600	360	385	9.5
GSW1250H	125	140	6.8	GSW3700	370	395	9.5
GSW1250	125	140	6.8	GSW3800	380	405	9.5
GSW1300	130	145	6.8	GSW3900	390	415	9.5
GSW1350	135	150	6.8	GSW4000	400	425	9.5
GSW1400	140	155	6.8
