C ring
- Introduction
C-ring commonly used in the solenoid valve for high-precision pneumatic seal use
Material: nitrile (NBR), fluoride glue (FKM / VITON), etc .;
Hardness: A50 ~ 90 (Shore hardness), commonly used A65-70 or 70-75, etc., can also be developed according to customer hardness;
Temperature: NBR: limit temperature of -40 ℃ ~ 120 ℃, long-term use temperature is -20 ℃ ~ 100 ℃;
FKM: limit temperature of -40 ℃ ~ 240 ℃, long-term use temperature is -20 ℃ ~ 220 ℃;
Properties: wear, oil, high temperature
45 degree sub-line ultra-high wear resistance:
Can be customized according to customer requirements, the number of wear-resistant up to 500 million times, 700 million and more than 10 million times
![F5_$%$Q5{~(9C7D(_59R3]A.png](/upload/image/20180127/15170146757354460.png "F5_$%$Q5{~(9C7D(_59R3]A.png")

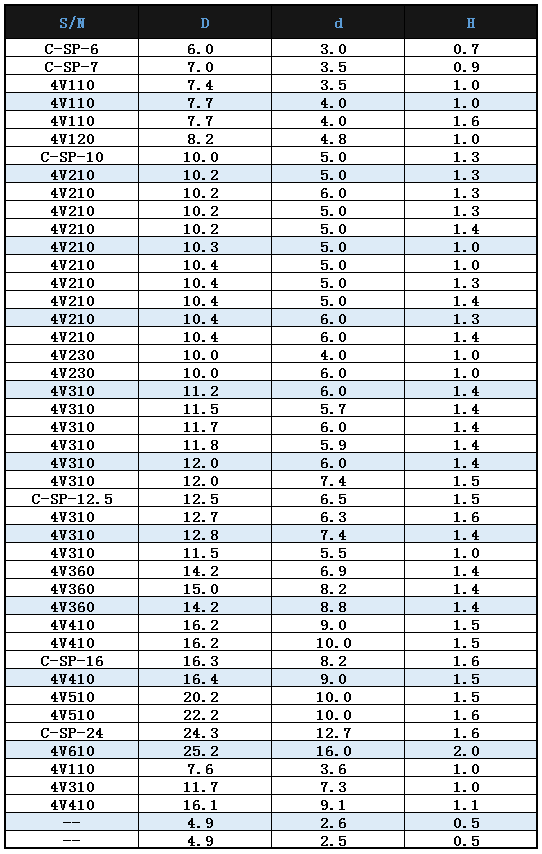

Part of the specification table
